FreeScan UE Pro, Shining 3D, High Precision Metrology Scanner

DESCRIPTION

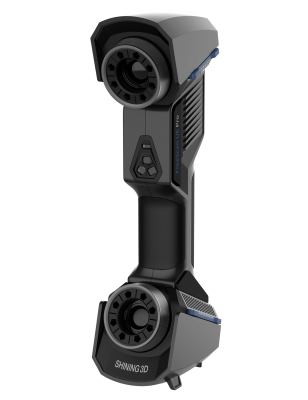

FreeScan UE Pro by Shining 3D – High-Precision Handheld Laser 3D Scanner
Engineered for industrial-grade metrology, the FreeScan UE Pro delivers unparalleled accuracy and versatility in a portable handheld form. Ideal for precision inspection, reverse engineering, and quality control, this scanner combines laser and photogrammetry technology for fast, reliable, and repeatable 3D scanning results.

ADDITIONAL INFORMATION

TECHNICAL SPECIFICATIONS – FREESCAN UE Pro

• Accuracy: Up to 0.02 mm
• Volumetric Accuracy (With Photogrammetry): 0.02 mm + 0.015 mm/m
• Volumetric Accuracy (Without Photogrammetry): 0.02 mm + 0.04 mm/m
• Scanning Area: 510 mm × 520 mm
• Laser Class: Class II (eye-safe)
• Light Source:
  • 26 blue laser crosses
  • 5 parallel blue laser lines (deep hole scanning)
  • 1 single blue laser line (fine detail scanning)
• Scanning Rate: Up to 1,850,000 points/s
• Resolution: Up to 0.01 mm
• Working Distance: 300 mm
• Depth of Field: ±200 mm
• Tracking Method: Markers (no external tracking equipment needed)
• Output Formats: .stl, .obj, .ply, .asc
• Software: FreeScan software (supports direct transfer to Geomagic Control X, Design X, and other 3rd-party tools)
• Weight: 830 g
• Operating Temperature: 10–40°C
• Interface: USB 3.0
• Power Supply: AC power adapter

ADDITIONAL RENTAL REQUIREMENTS:
Following items must be provided to the Supplier and KWIPPED prior to the delivery of the equipment:

• Copy of Renter's Driver's License
• Proof of $1,000,000 of Property Insurance listing the Supplier as the Additional Insured
• Proof of $2,000,000 of Liability Insurance listing the Supplier as the Additional Insured
• (3) Business References from the Renter must be provided to the Supplier

METHOD OF PAYMENT REQUIREMENTS:

• All rental payments must be made to KWIPPED with an ACH Bank Transfer
  • NOTE: ACH Bank Transfers take 7-10 Business Days to clear.  The Supplier will proceed with the delivery of the equipment once the ACH Bank Transfer has cleared KWIPPED's bank account; this means the Rental Start Date may be delayed.  If Expedited Delivery is required to meet the Renter's needs, a One-Time Wire Transfer can be used to make the initial payment for the total amount due upfront; an ACH Bank Transfer will still be required for all additional monthly payments. The Renter will be responsible for paying KWIPPED all Wire Transfer Fees in addition to the total amount due upfront.
• A valid Credit Card with an Expiration Date that is later than the End Date of the Rental Contract must be provided to KWIPPED
• First and Last Month's Rent will be collected by KWIPPED immediately when the order has been placed; add (1) Month's Rent to the 'Due Upfront' showing above on this quote to see the total amount due upfront

MINIMUM RENTAL TERM:

• 3-MONTH / 90-DAY MINIMUM RENTAL TERM REQUIRED; customer will be required to pay all (3) Monthly Rental Payments to KWIPPED if an early rental termination request is submitted

RENTAL CONTRACT: https://www.kwipped.com/rentalcontract
