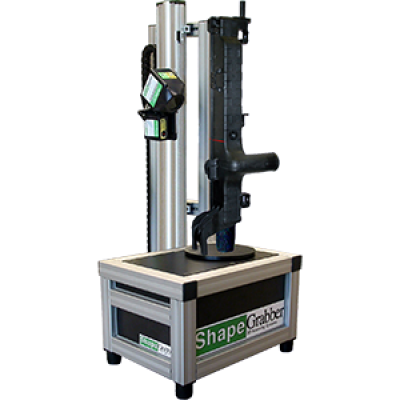

ShapeGrabber Ai600 Automated 3D Scanner

DESCRIPTION

The ShapeGrabber Ai600 automated 3D laser scanner brings speed, accuracy, ease-of-use and complete coverage to industrial 3D measurement and inspection. Offering a longer scan length than the Ai300, the Ai600 uses multiple motion axes and an open design to handle parts that cannot fit in our popular Ai310 scanner.
ShapeGrabber scanners eliminate the need for software alignment and registration and ensure fast, accurate results. Our automated 3D scanning solutions are ideal for situations in which speed and ease of use are important.
As a fast, accurate laser scanner, the Ai600 helps manufacturers improve product quality and compliance without slowing down production. This 3D scanner offers:

• Ease of use – no need to write special code to scan each object
• Speed – fast and simple to scan a part without complicated, time consuming orientation and alignment processes
• Efficiency – significantly reduce the time required to completely scan a shape, reducing the cost associated with executing the job

Features

• Very fast: reduce your inspection time to minutes instead of hours
• Turnkey: all you need is your part
• Totally integrated: acquire, align, and inspect using a click of the mouse
• Compatible with a wide variety of materials and colors
• Works in all normal lighting conditions
• Easy to use: requires no software alignment

Physical Characteristics

• Footprint:
  • Width: 420mm (17”)
  • Depth: 560mm (22”)
  • Height: 1010mm (40”)
• Work Surface: Table mount
• Weight: 35kg (77lbs)
• Electrical: 120 or 220 VAC, 50/60 Hz
• Laser: CDRH Class II / IEC Class 2M

Performance Overview

• 600mm (24”) of vertical motion
• High precision rotary table automatically reorients part being scanned a full 360 degrees
• From 39,000 to 350,000+ points/sec
• Scan volume depends on scanhead used. See table below.
